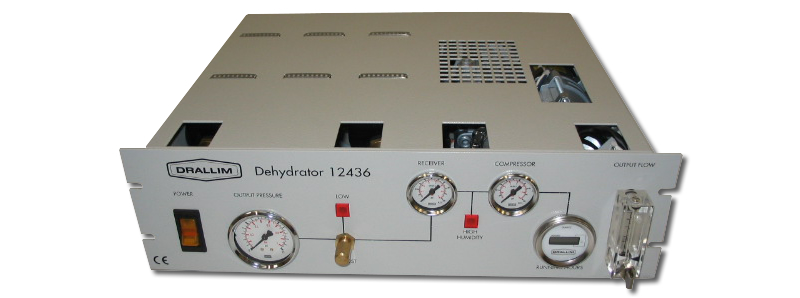

Dimensionally identical to the 12435 Waveguide Dehydrator, this compact 19” rack mounted unit has been designed to fulfil the requirements of slightly larger applications. A larger compressor enables the unit to produce 7 cubic feet per hour of dry air, at output pressures of between 0.5 and 5psi.
Like the 12435 Waveguide Dehydrator, this unit has an integral air receiver, an output pressure regulator and gauge, and remote alarm facilities. In addition, the 12436 has compressor and receiver gauges, which can help with routine maintenance and a total flowmeter to measure the combined air loss between the units’ 3 dry air outputs.

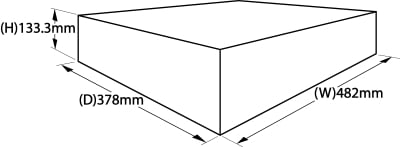

|Dry air delivery||Output pressure||Dry air dewpoint||No. of outlets||Height (mm)||Width (mm)||Depth (mm)||Weight (kg)||Operating voltage|
|7 ft³/hr||0.5 – 5 psi||-35ºC||3||133.3||482||378||17.5||230 v AC|
