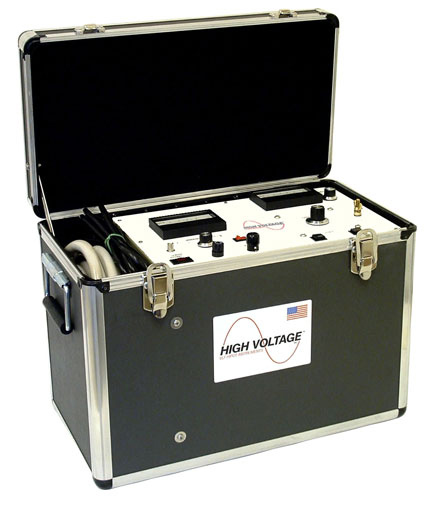

The PFT-503CM(F) 0 – 50kVac @ 3kVA test set has the highest voltage rating of the single piece AC test sets. The versatility and competitive pricing of this highly portable unit makes it High Voltage Inc.’s bestselling HV test set. A benchtop version is also available.
*Options: This can be upgraded to include a fault burning circuit, and for increased portability hand carts are also available. For further information, please contact us.

Input: 120V, 60Hz, 1A or 230V, 50/60Hz, 8A
Output: 0 – 50kVac, 60mA, 1kVA resistive load, 3kVA capacitive load
Duty: 3kVA: 1 hr on, 1 hour off; 1kVA continuous
Voltmeter: 3.5″, scaled 0-25/50kVac, ±2% FS accuracy
Currentmeter: 3.5″, scaled 0-1mAac, ±2% FS with multipliers x1, x10, x100
Guard/ground load return: 20mA at full current in ground mode
Controls
Voltage output: Continuously adjustable up to max. voltage
Saftey
Interlocks: Zero start and external interface
Protection: Surge and transient
